The rise of electric vehicles (EVs) is transforming the automotive industry and reshaping the future of transportation. Central to this revolution is the onboard charger (OBC), a critical component that directly impacts the performance, efficiency, and convenience of EV charging. This article explores the role of onboard chargers in electric vehicles, their functions, benefits, and how they contribute to the broader EV ecosystem.
Understanding Onboard Chargers in Electric Vehicles

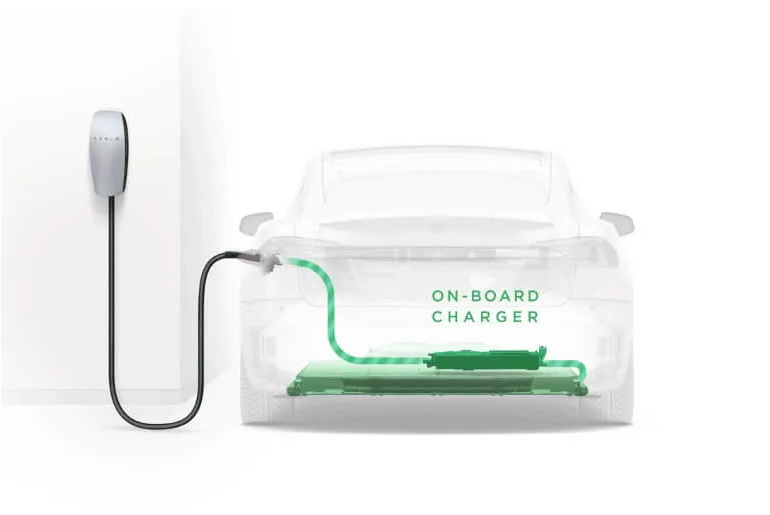

An onboard charger is an integral part of an electric vehicle. It is the device responsible for converting alternating current (AC) electricity from an external source, such as a home or public EV charging station, into the direct current (DC) electricity required to charge the vehicle’s battery. Unlike DC fast chargers, which deliver power directly to the battery, onboard chargers act as the intermediary, enabling safe and efficient charging.
The design and capabilities of onboard chargers vary across EV models, depending on factors such as battery size, desired charging speed, and vehicle architecture. Despite these variations, all OBCs share a common goal: to ensure that EVs can be charged effectively in a variety of settings.
Functions of Onboard Chargers in Electric Vehicles
-
AC-to-DC Conversion
Onboard chargers play a fundamental role in converting the AC power supplied by standard EV charging stations into the DC power required by the battery. This conversion ensures compatibility between the vehicle’s battery and widely available power sources.
-
Battery Management
OBCs include sophisticated battery management systems to ensure safe charging. These systems regulate voltage, current, and temperature during the charging process, protecting the battery from overcharging or overheating.
-
Charging Speed Control
The onboard charger determines the maximum charging speed when using AC EV charging stations. For example, a vehicle with an onboard charger rated at 11 kW can only accept a maximum of 11 kW from an AC charger, even if the station provides higher power.
-
Interoperability
Onboard chargers ensure that electric vehicles can charge using a wide range of EV charging infrastructure, from residential outlets to public charging networks, enhancing the flexibility and convenience of EV ownership.
Types of Onboard Chargers
Onboard chargers in electric vehicles are typically classified based on their power capacity:
-
Single-Phase Onboard Chargers
These chargers are commonly found in smaller EVs or plug-in hybrids and operate using standard residential power. They are cost-effective but offer slower charging speeds, typically around 3.3 kW to 7.4 kW.
-
Three-Phase Onboard Chargers
Found in many high-performance electric vehicles, these chargers offer faster charging speeds, typically between 11 kW and 22 kW. They are ideal for regions with widespread access to three-phase power, providing faster turnaround times for EV charging.
Benefits of Onboard Chargers in Electric Vehicles
-
Convenience and Flexibility
Onboard chargers allow EV owners to charge their vehicles at home, work, or public charging stations, providing flexibility and reducing reliance on specialized DC fast-charging infrastructure.
-
Cost-Effective Charging
Since AC EV charging infrastructure is generally less expensive to install and maintain compared to DC fast chargers, onboard chargers enable cost-effective charging solutions for both residential and commercial settings.
-
Enhanced Accessibility
Onboard chargers ensure compatibility with the vast majority of AC EV charging stations worldwide, making it easier for drivers to find charging options regardless of location.
-
Improved Grid Integration
Advanced onboard chargers equipped with smart charging capabilities can interact with the grid, enabling features like load balancing, time-of-use charging, and Vehicle-to-Grid (V2G) functionality. This supports grid stability and promotes the integration of renewable energy.
Challenges and Considerations for Onboard Chargers
-
Power Limitations
The maximum power of an onboard charger limits the charging speed from AC EV charging stations, which can result in longer charging times compared to DC fast chargers.
-
Cost and Complexity
High-power onboard chargers add cost and complexity to vehicle design. Automakers must balance charging capabilities with affordability to appeal to a broader market.
-
Heat Management
High-power onboard chargers generate significant heat, requiring advanced thermal management systems to ensure safe and efficient operation.
The Future of Onboard Chargers in Electric Vehicles
As the demand for electric vehicles grows, the role of onboard chargers is evolving to meet new challenges and expectations:
-
Higher Power Ratings
Automakers are developing onboard chargers with higher power ratings to reduce charging times and meet the needs of drivers with larger battery packs.
-
Smart Charging Features
Future onboard chargers will integrate advanced features like bidirectional charging, allowing electric vehicles to participate in V2G programs and support renewable energy integration.
-
Lightweight and Compact Designs
Innovations in materials and design are leading to more compact and lightweight onboard chargers, which improve vehicle efficiency and reduce overall manufacturing costs.
-
Global Standardization
Efforts are underway to standardize charging protocols and technologies, ensuring seamless interoperability across different EV models and EV charging networks.
Onboard Chargers and the Broader EV Charging Ecosystem
The onboard charger is a vital link in the electric vehicle charging ecosystem, enabling seamless interaction between vehicles, EV charging stations, and the power grid. By facilitating efficient AC charging, onboard chargers complement the role of DC fast chargers, which are designed for rapid energy replenishment during long-distance travel.
In addition to enabling basic charging functionality, onboard chargers are integral to unlocking advanced capabilities like smart grid integration and renewable energy utilization. For example, an electric vehicle equipped with a bidirectional onboard charger can store surplus solar energy during the day and return it to the grid during peak demand, supporting energy sustainability.
Conclusion
Onboard chargers are essential components of electric vehicles, enabling safe, efficient, and flexible EV charging. Their ability to convert AC power, manage batteries, and interact with EV charging stations ensures that EVs remain practical and accessible for a wide range of users. As the electric vehicle market continues to expand, onboard chargers will play an increasingly important role in enhancing the EV charging experience and supporting the transition to a more sustainable energy future. Through innovations in power, efficiency, and smart functionality, onboard chargers will remain at the forefront of the electric vehicle revolution, shaping the future of transportation and energy management.
